Spray Soil Particles 100T/H Linear Vibrating Screen 1-8 Layers

Product Categories
Xinxiang Techang Vibration Machinery Co.,Ltd.
Contact Now

Spray Soil Particles 100T/H Linear Vibrating Screen 1-8 Layers

  • 1
  • 2

Brand Name : TECHANG

Model Number : TCDZSF

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 20~30 working days

Packaging Details : Wooden case

Name : Spray Soil Particles Linear Vibrating Screen

Application : Spray Soil Particles

Capacity : 50 KG~100 T/H

Frequency : 960 t/min

Angle of oscillation : 45~60 degree

Layer(s) : 1-8 layers

Amplitude : 6-8 mm

Customized : Acceptable

Contact Now

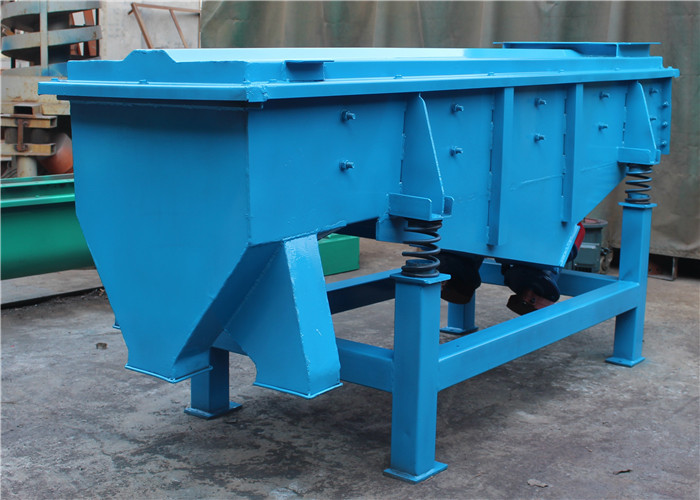

Spray Soil Particles Linear Vibrating Screen

Introduction

Spray Soil Particles Linear Vibrating Screen is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Spray Soil Particles Linear Vibrating Screen can be used for grain, powder, granule, flake, liquid materials.

Spray Soil Particles 100T/H Linear Vibrating Screen 1-8 Layers

Technical data

The below table shows the detailed data of different models of Spray Soil Particles Linear Vibrating Screen for your reference. And we will choose a suitable model according to your materials and application.

Model Size of screen surface Number of layers of screen Mesh size Number of vibration amplitude Motor power
DZSF520 500*2000 1-6 2-400 mesh 960r/min 4-8 2×0.4
DZSF825 800×2500 1-6 2×(0.4-0.75)
DZSF1020 1000×2000 1-6 2×(0.75-1.5)
DZSF1030 1000×3000 1-6 2×(0.75-1.5)
DZSF1230 1200×3000 1-6 2×(0.75-3)
DZSF1530 1500×3000 1-6 2×(0.75-3)
DZSF1540 1500×4000 1-6 2×(0.75-3)

Application

Spray Soil Particles Linear Vibrating Screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
