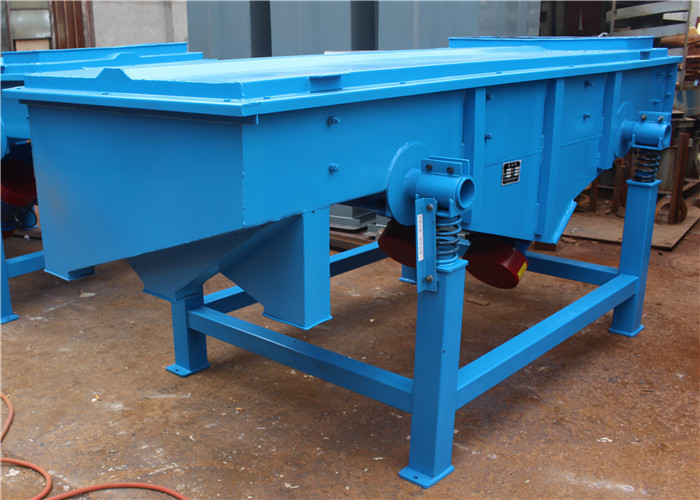

Seed Carbon Steel DZSF Linear Vibrating Screen
Introduction
Seed Carbon Steel DZSF Linear Vibrating Screen is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Features
1. Low consumption with high yield and low cost.
2. Good sealing without dust flying.
3. Can be used for single or multi layer.
Technical data
The below table shows the detailed data of different models of Seed Carbon Steel DZSF Linear Vibrating Screen for your reference. And we will choose a suitable model according to your materials and application.
| Model | Size of screen surface | Number of layers of screen | Mesh size | Number of vibration | amplitude | Motor power |
| DZSF520 | 500*2000 | 1-6 | 2-400 mesh | 960r/min | 4-8 | 2×0.4 |
| DZSF825 | 800×2500 | 1-6 | 2×(0.4-0.75) |
| DZSF1020 | 1000×2000 | 1-6 | 2×(0.75-1.5) |
| DZSF1030 | 1000×3000 | 1-6 | 2×(0.75-1.5) |
| DZSF1230 | 1200×3000 | 1-6 | 2×(0.75-3) |
| DZSF1530 | 1500×3000 | 1-6 | 2×(0.75-3) |
| DZSF1540 | 1500×4000 | 1-6 | 2×(0.75-3) |
Application
Seed Carbon Steel DZSF Linear Vibrating Screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
Product Tags:
|
|

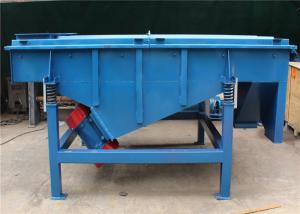

Seed Carbon Steel DZSF 960r/Min Linear Motion Vibrating Screen Vibro Screen Images
|
