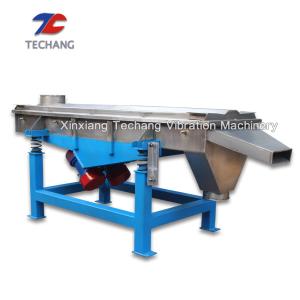

Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery
Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer Large capacity linear vibrating screen sieving screener screening machinery, and be discharged from each outlets.
Stainless steel for contacting parts
Full carbon steel rotary vibrating screen
The following table shows the detailed data of different models of Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery for your reference.
| Model | Size of screen surface | Number of layers of screen | Mesh size | Number of vibration | Amplitude | Motor power |
| DZSF520 | 500X2000 | 1~6 | 2~400 mesh | 960r/min | 4~8 | 2x0.4 |
| DZSF825 | 800X2500 | 2X(0.4-0.75) |
| DZSF1020 | 1000X2000 | 2X(0.75-1.5) |
| DZSF1030 | 1000X3000 |
| DZSF1230 | 1200X3000 | 2X(0.75-3) |
| DZSF1530 | 1500X3000 |
| DZSF1540 | 1500X4000 |

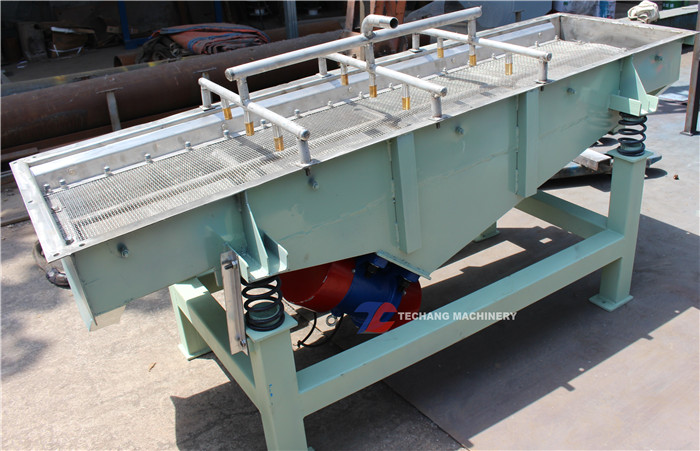

Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery is made of vibrating motor, inlet, outlet, screen mesh, screen frame, spring, support base, and so on. The following pictures will help you to know more about it.
Working principle
Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Large capacity linear vibrating screen sieving screener screening machinery, jumps and moves forward in a straight line, achieving the sieving and classification purpose.
Features
Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery has following features:
1. Low energy consumption, high efficiency
2. Simple structure, easy to maintenance
3. Full closed structure, no dust flying
4. Sieving accuracy reach to 400 mesh, 6 layers
Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
FAQ
Q: What information do I need to provide for getting an accurate quotation for Large Capacity Linear Vibrating Screen Sieving Screener Screening Machinery?
1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. What’s the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
